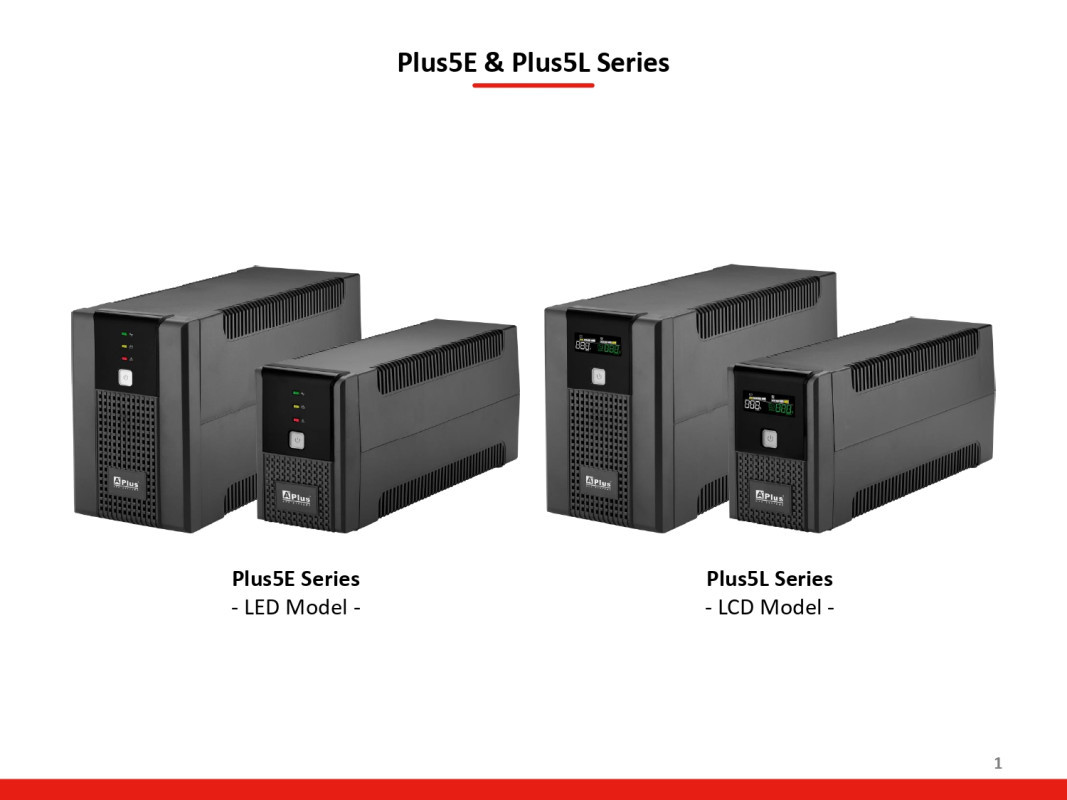

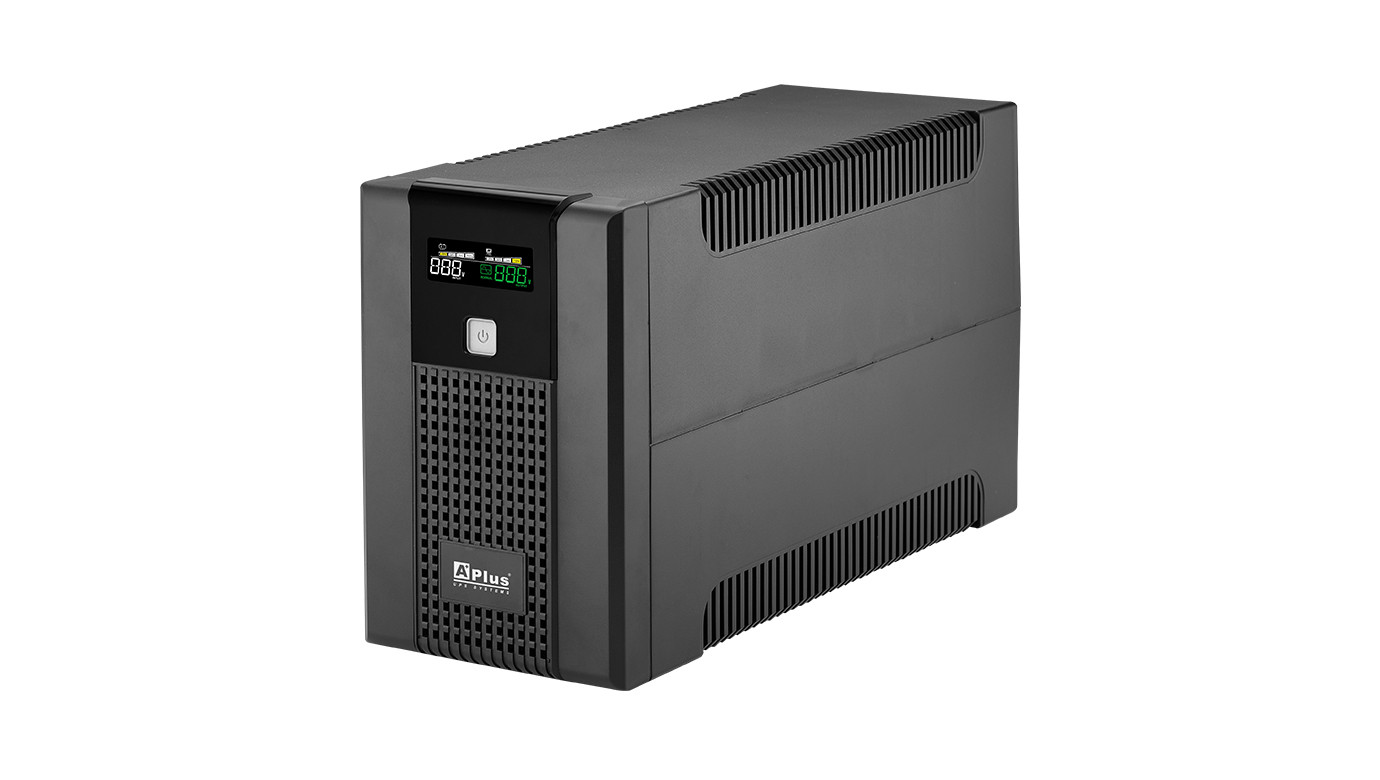

Plus5L-1200G Line Interactive UPS, 1200VA/720W

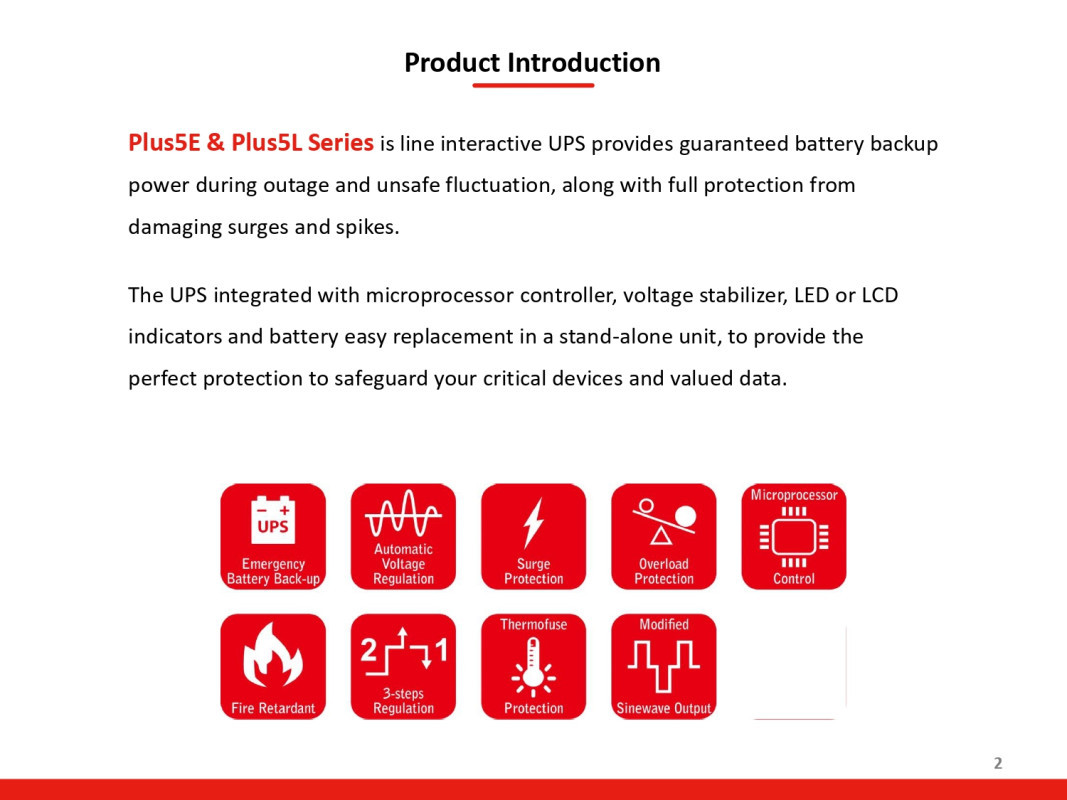

The Plus5L Series Plus5L-1200VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes. Unique battery compartment makes it easy, fast and money saving to change battery. Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LCD display and battery easy replacement in a stand-alone unit, Plus5L Series UPS is the best choice to protect your data and keep you connected during utility blackout.
Input voltage: -30%, +25%
W/ I-440 panel, LCD display, AVR(2 boost + 1 buck)

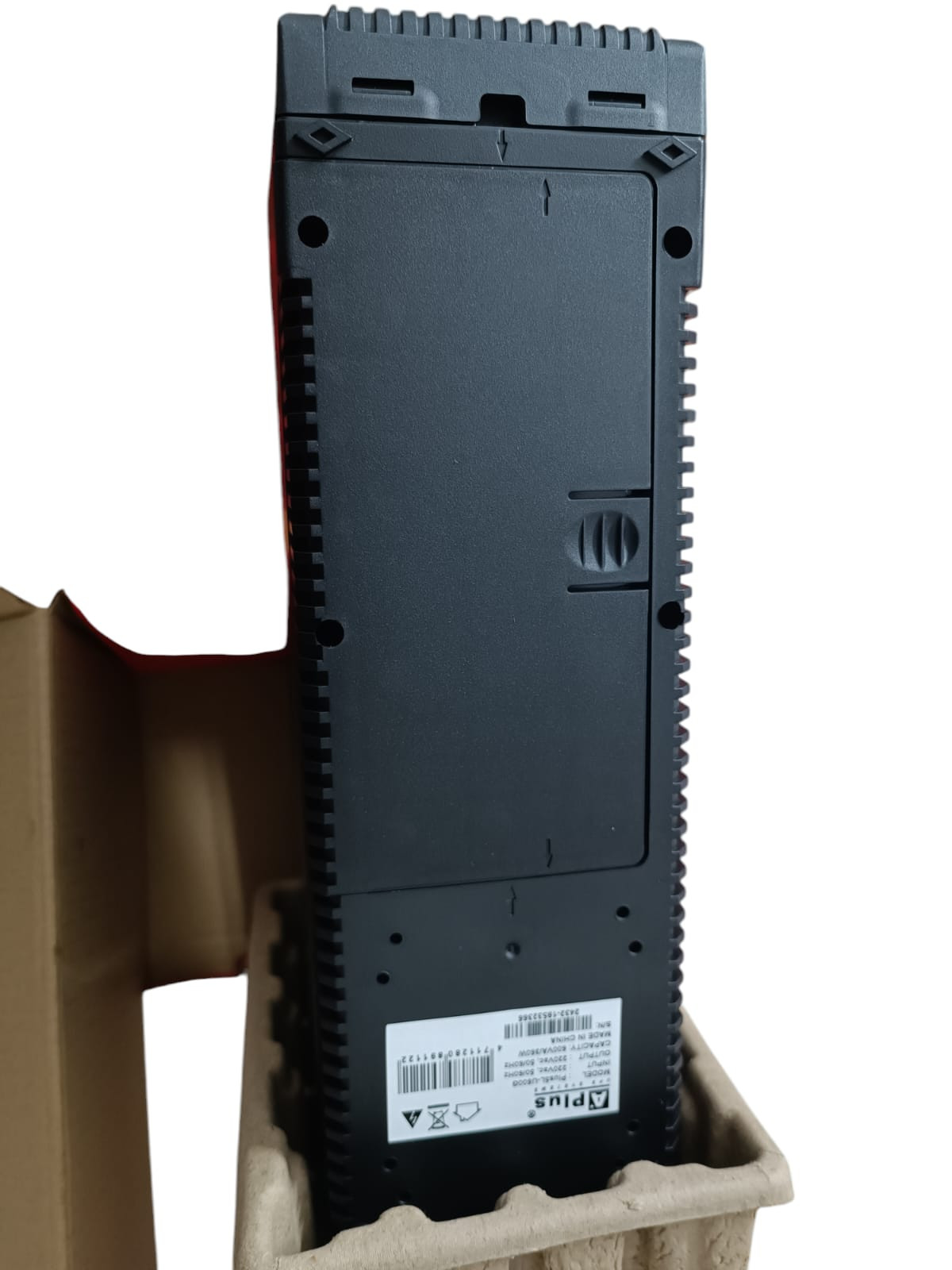

W/ Easy battery replacement I-359 Case

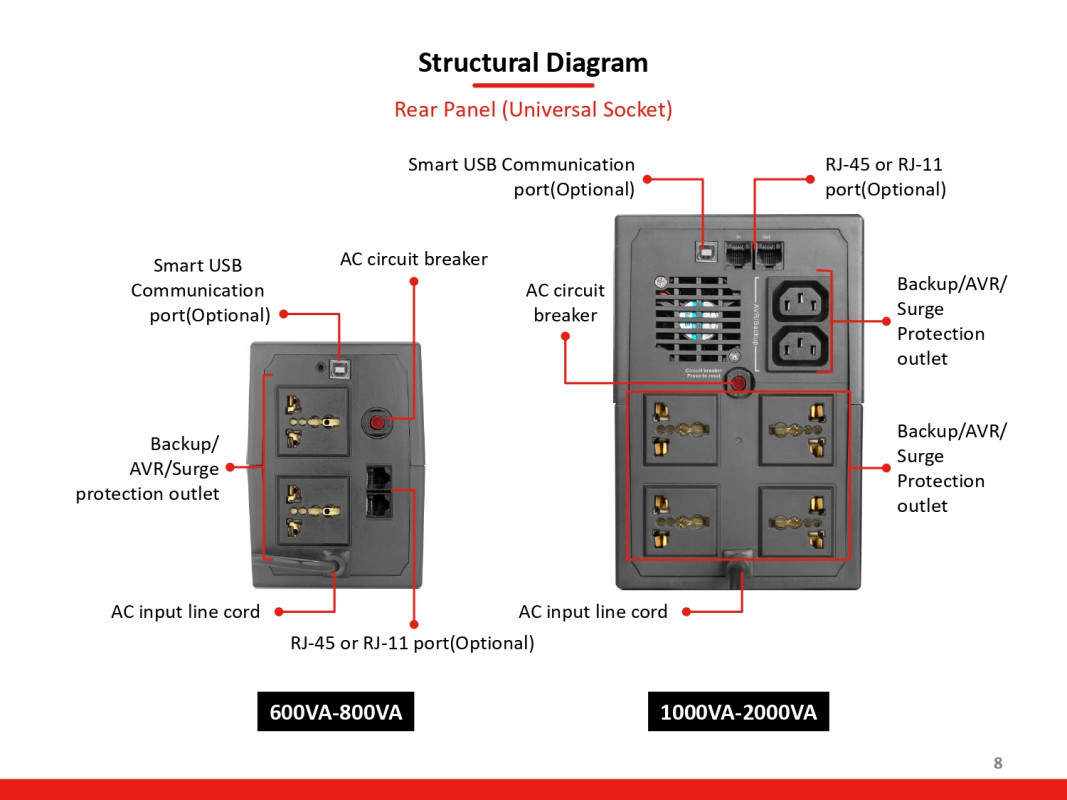

W/ Outlet: Schuko*4pcs + IEC-320 C13*2pcs for backup/AVR/surge protected
W/ Input: fixed German plug power cord
W/ Battery 12V/7AH*2pcs W/ RJ-45 port, USB port + USB cable + down laod software

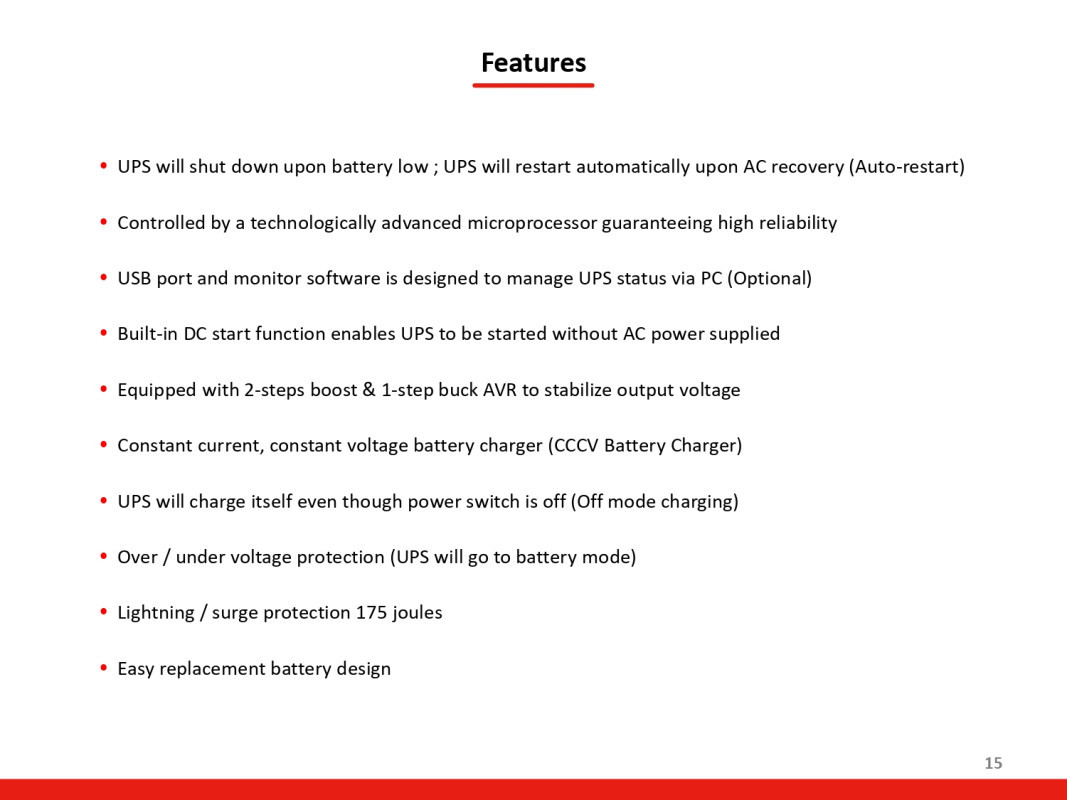

Advantages
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Over / under voltage protection (UPS will go to battery mode)
●  Lightning / surge protection 175 joules
●  Easy replacement battery design

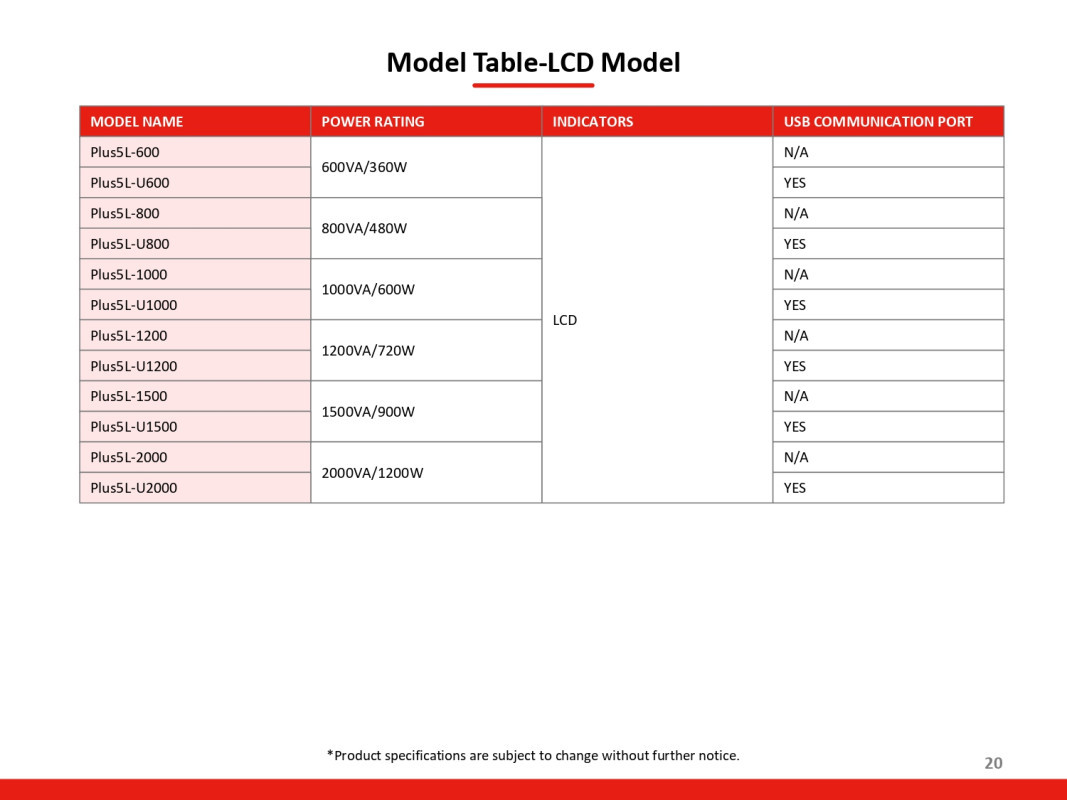

Plus5L-600GPlus5L-800GPlus5L-1000GPlus5L-1200GPlus5L-1500GPlus5L-2000G
Plus5L-U600GPlus5L-U800GPlus5L-U1000GPlus5L-U1200GPlus5L-U1500GPlus5L-U2000G

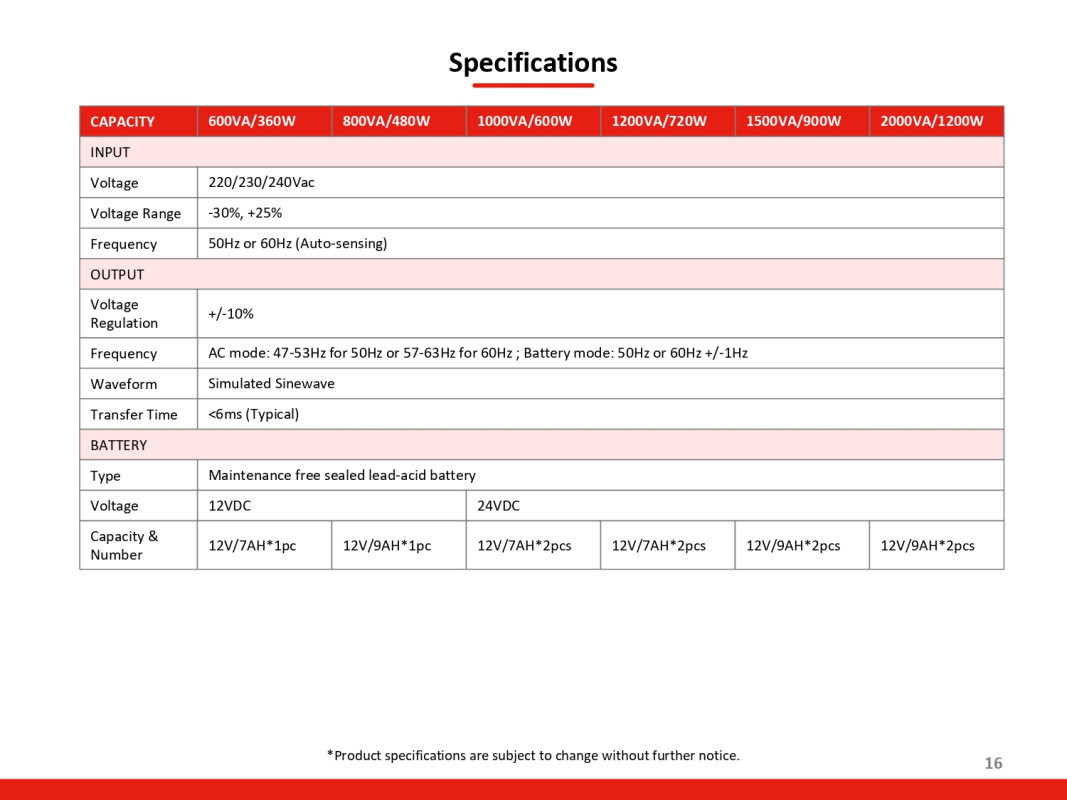

CAPACITY600VA/360W800VA/480W1000VA/600W1200VA/720W1500VA/900W2000VA/1200W
INPUT
Voltage220/230Vac
Voltage Range-30%, +25%
Frequency50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation+/-10%
FrequencyAC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
WaveformSimulated Sinewave
Transfer Time<6ms (Typical)

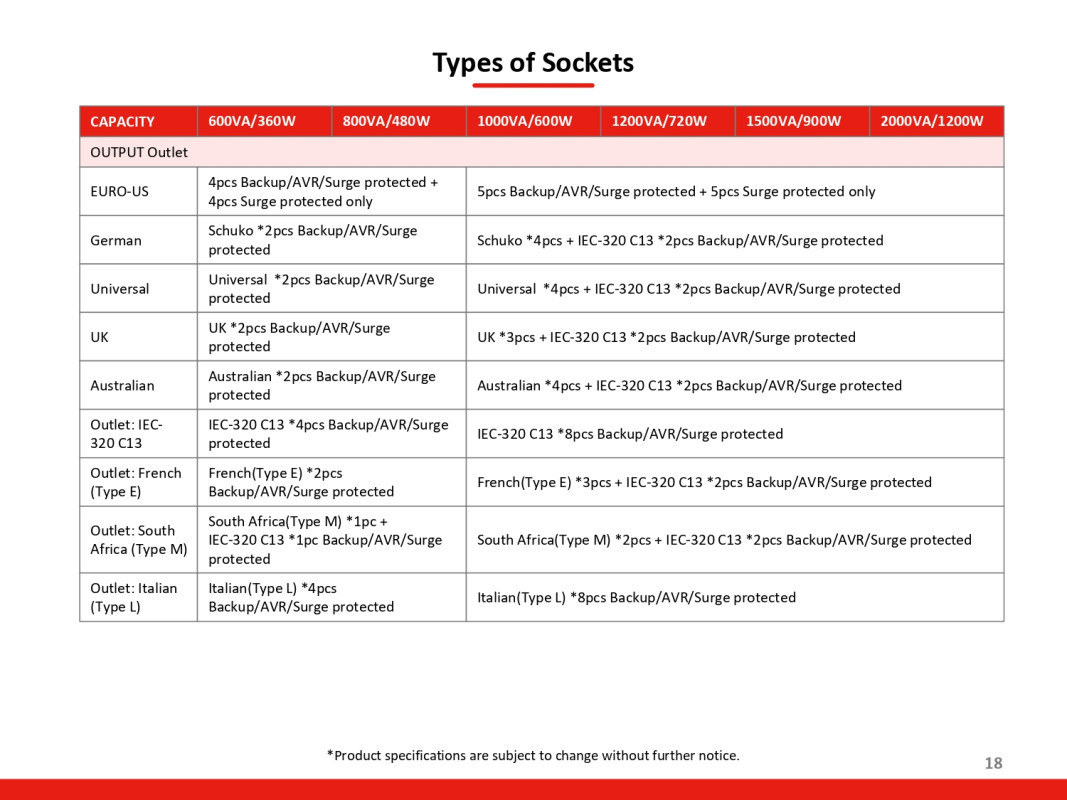

OutletSchuko *2pcs Backup/AVR/Surge protectedSchuko *4pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected
BATTERY
TypeMaintenance free sealed lead-acid battery
Voltage12VDC24VDC
Capacity & Number12V/7AH*1pc12V/9AH*1pc12V/7AH*2pcs12V/7AH*2pcs12V/9AH*2pcs12V/9AH*2pcs

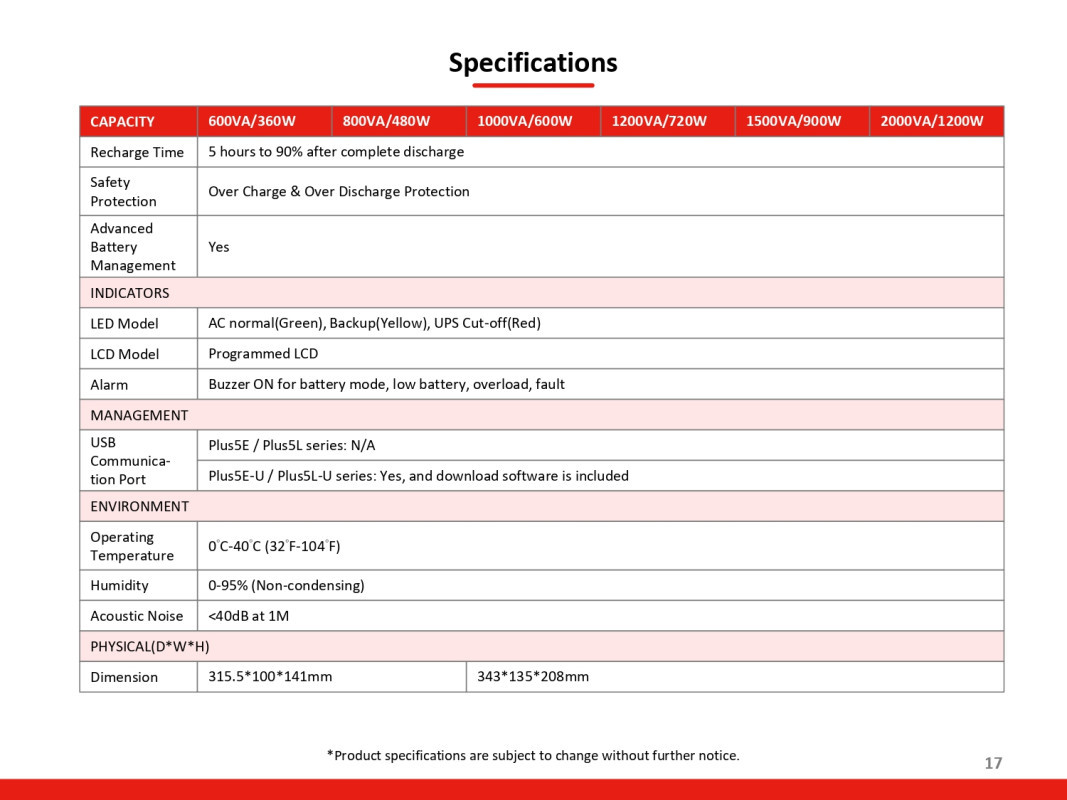

Recharge Time5 hours to 90% after complete discharge
Safety ProtectionOver Charge & Over Discharge Protection
Advanced Battery ManagementYes
DISPLAY

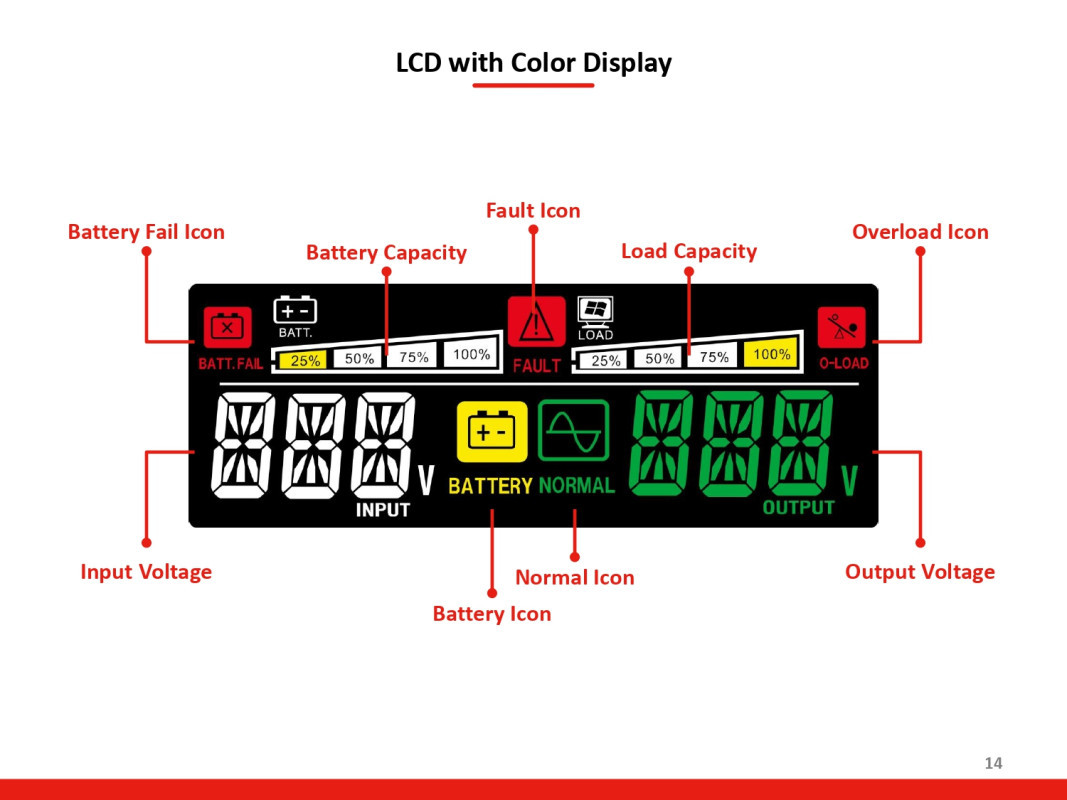

LCD Status IndicatorsInput voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery ModeTwo short tones every 8 seconds
Low BatteryFour short tones every second
OverloadBeeping continuously
FaultBeeping continuously
MANAGEMENT
USB Communication PortPlus5L series: N/A
Plus5L-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature0°C-40°C (32°F-104°F)
Humidity0-95% (Non-condensing)
Acousitc Noise<40dB at 1M
PHYSICAL
Net Weight4.68kg5.76kg9.08kg9.16kg10.8kg11.8kg
Dimension (D*W*H)315.5*100*141mm343*135*208mm
*Product specifications are subject to change without further notice.
